MSGS-200

Premium Multi-Spray Gun

The MSGS-200 is available with two filter options long and short and comes with a wide range of mesh sizes. It is also available in two maximum pressure ratings of 120bar and 250bar. A wide choice of tips is also available which enables you to apply all manner of different coatings with ease giving you a truly balanced performance experience.

The spray pattern adjustment has a unique patented design which allows you to reduce the width of the pattern by only turning the pattern adjuster, this means you can reduce the pattern size by up to 50%.

MSGS-200 exceptional ergonomics and light weight design helps to reduce RSI (repetitive strain injuries) thanks to its soft trigger action due to its unique pivot angle position. The MSGS200 has a quick and easy cap rotation which is helped by the plastic protection guard. This gun is also easy to maintain with its polished chrome body and it is fast cleaning and efficient with the patented nozzle and needle removal system.

Features & Highlights

Multi-Spray Technology

Precise Spray Pattern Control

Ergonomic Design

back

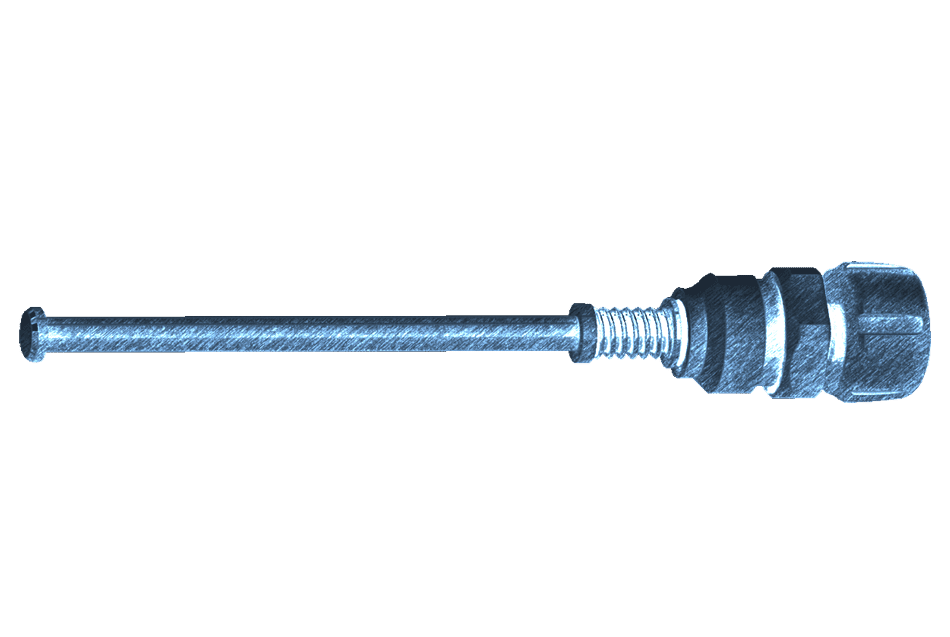

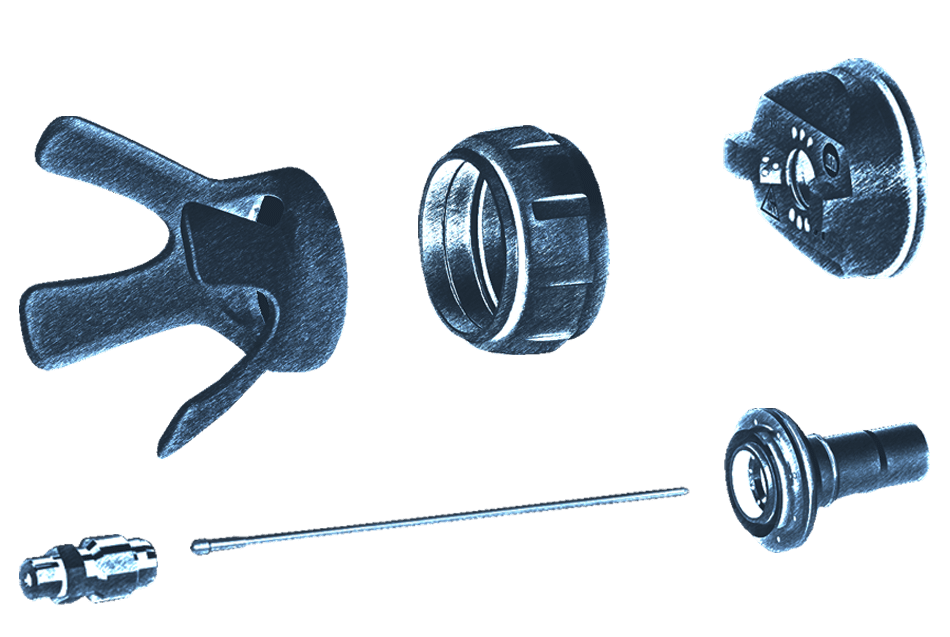

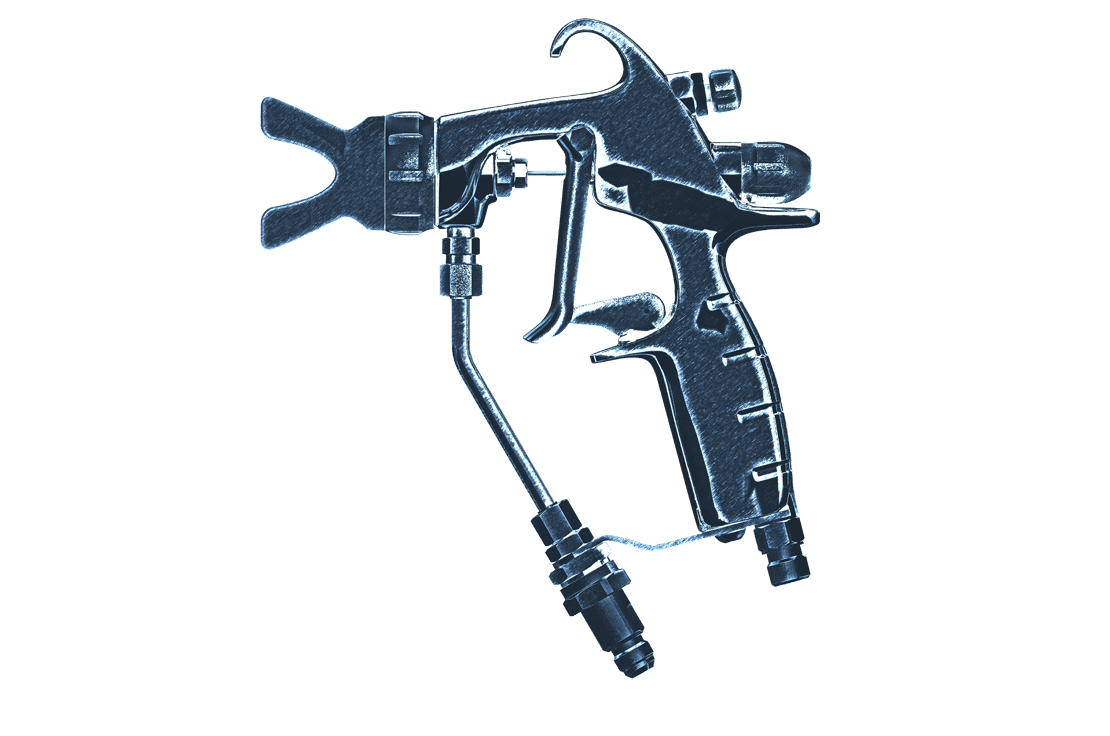

Air Cap - Fluid Nozzle + Fluid Needle Needle Packing Cartridge Set Trigger Set Short Filter Set Pattern Adjustment Set Fluid Needle Guide Set Air Valve Set

Air Cap Cover Set#93004420 Spray Tip Guard#93004430 Air Cap Cover Set (Less than 50 bar)#93004490 Short Spray Tip Guard (Less than 50 bar)#93004590 Air Cap Set#93004320 Fluid Nozzle + Fluid Needle Set#93004160 Fluid Nozzle #93004170 Fluid Needle#93004450

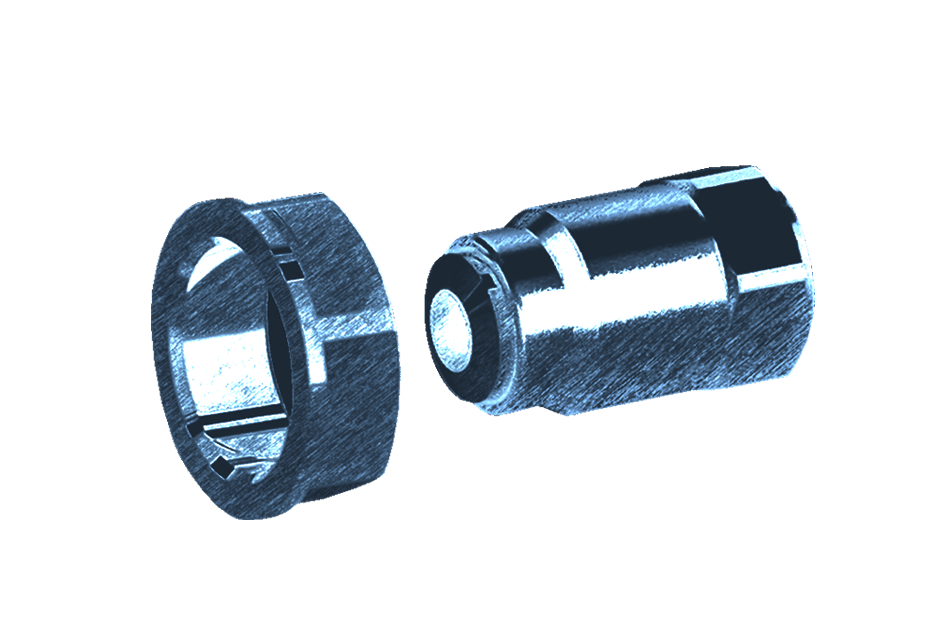

Nut#93004300 Needle Packing Cartridge Set#93004410

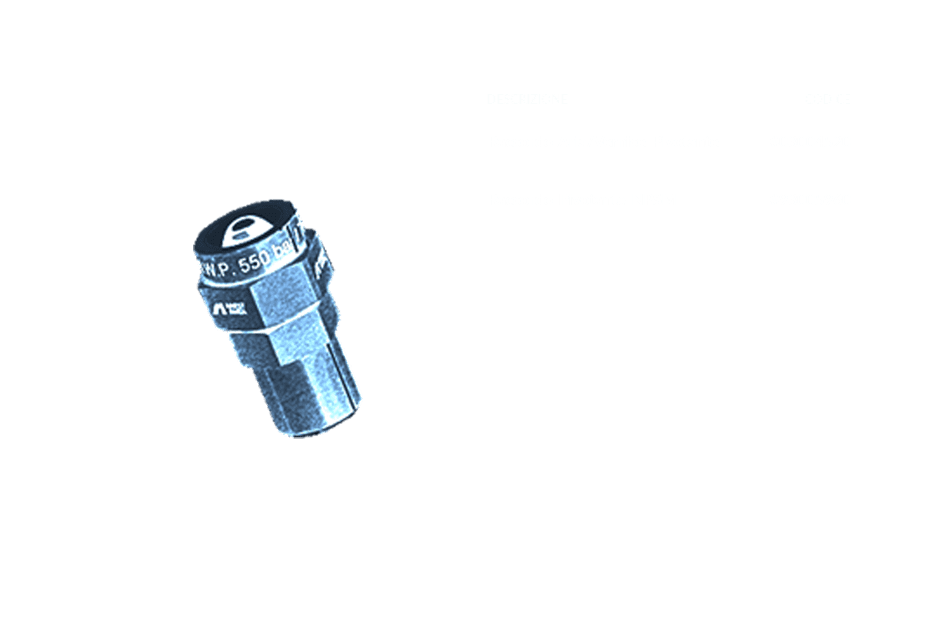

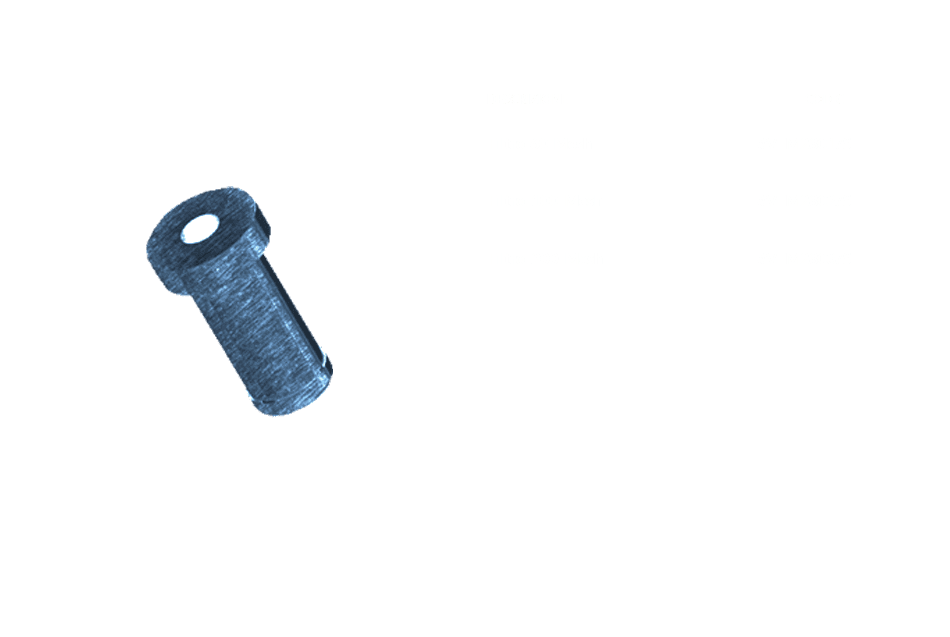

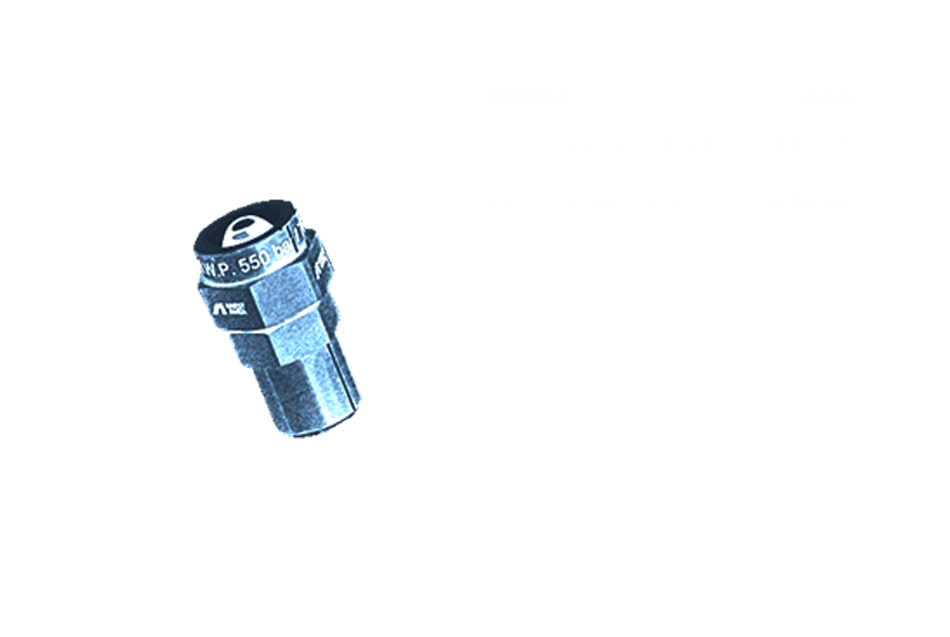

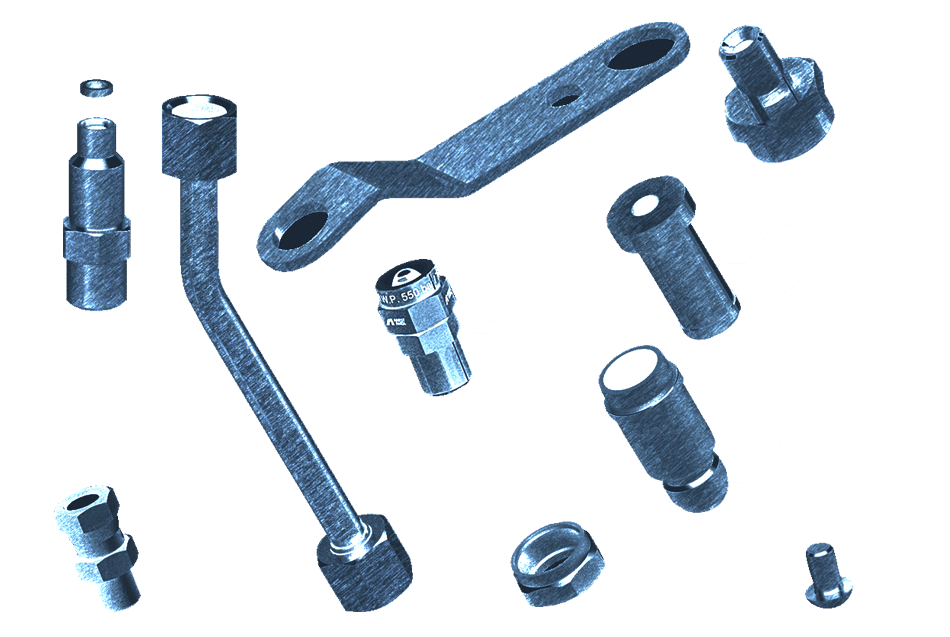

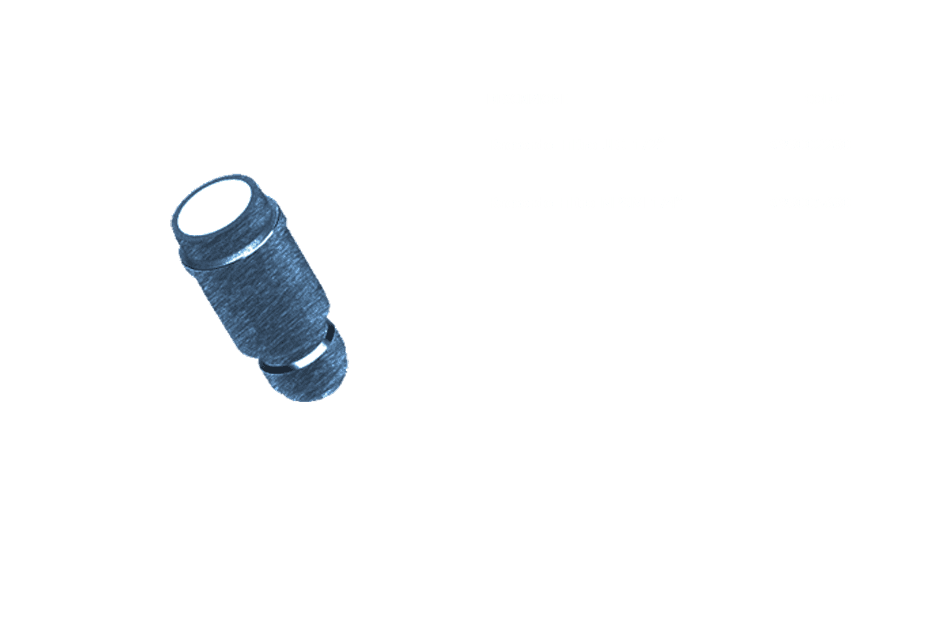

Fluid Joint#93004530 Adapter G1/4’’ NPSM 1/4’’#94006030 Fluid Tube#93004130 Nut#93514240 Plate#93004140 Filter Case#93514230 Fixing Screw#93004350 Filter Nut#93516230 Option 3 Option 2 Option 1

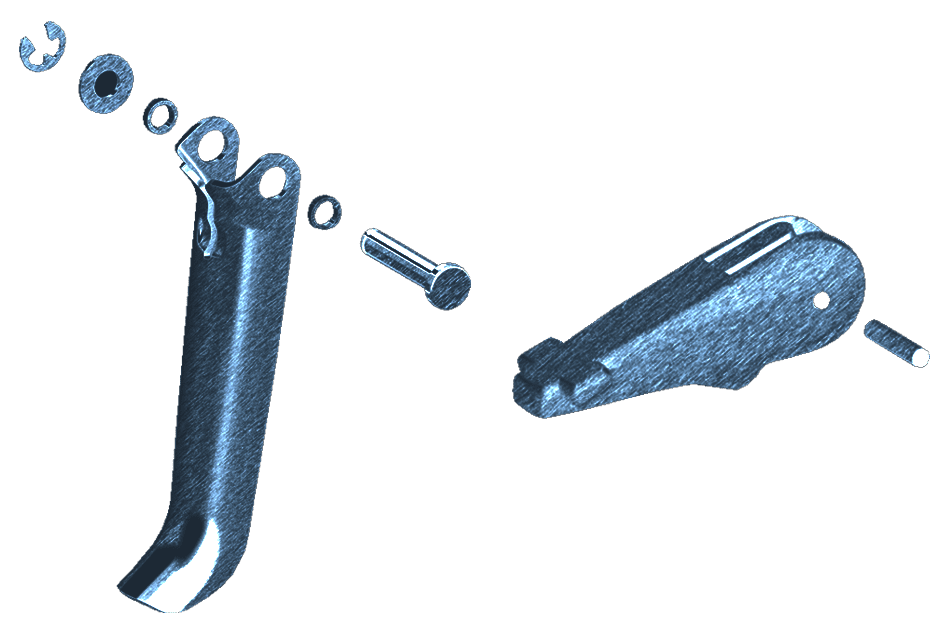

Trigger Set#93004200 Safety Lock Set#93004190

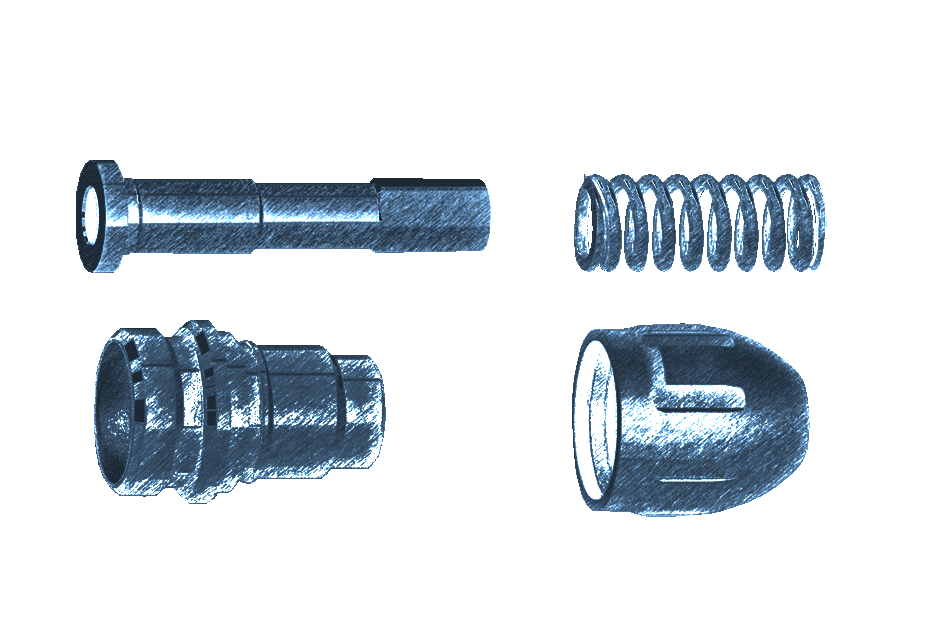

Needle Bushing#93004250 Needle Spring (250 bar)#93004270 Needle Spring (120 bar)#93004150 Fluid Needle Guide#93004280 Plug#93004400

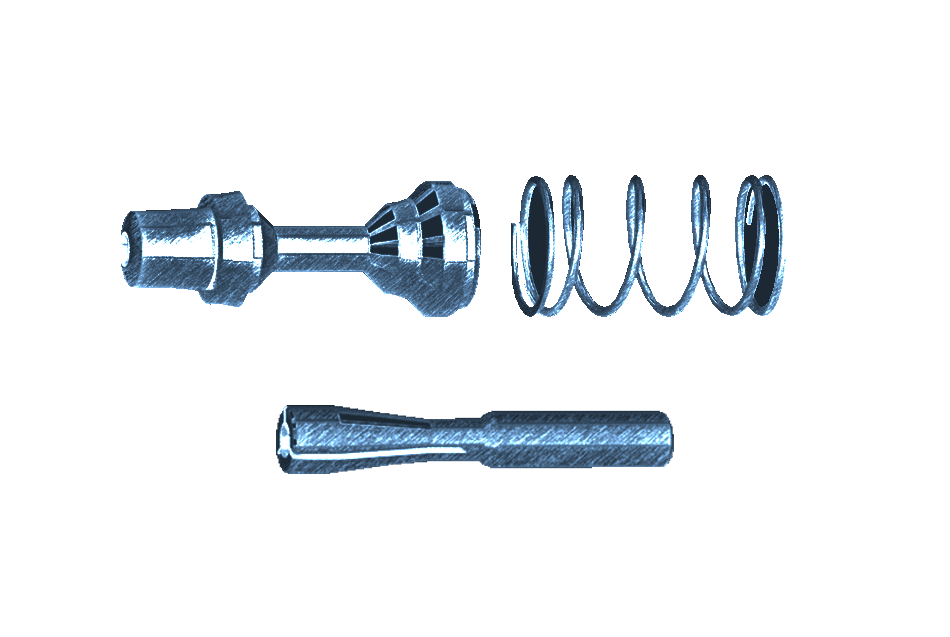

Air Valve#93004260 Collet#93004240 Air Valve Spring#93004330

PRODUCT VIEW
LIST VIEW

back

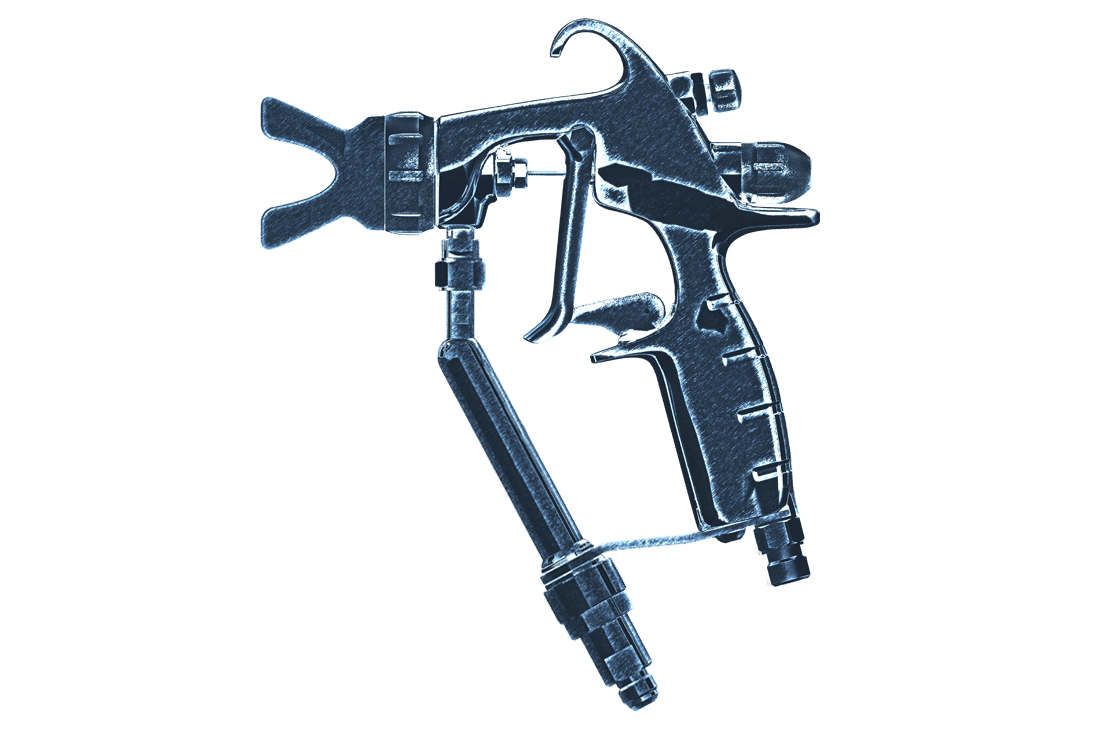

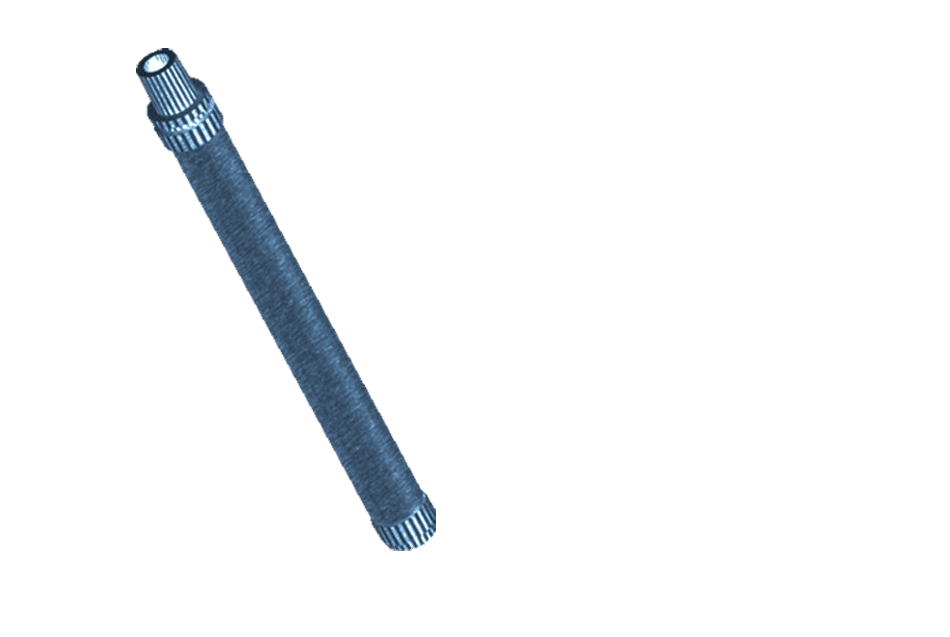

Air Cap - Fluid Nozzle + Fluid Needle Needle Packing Cartridge Set Trigger Set Long Filter Set Pattern Adjustment Set Fluid Needle Guide Set Air Valve Set

Air Cap Cover Set#93004420 Spray Tip Guard#93004430 Air Cap Cover Set (Less than 50 bar)#93004490 Short Spray Tip Guard (Less than 50 bar)#93004590 Air Cap Set#93004320 Fluid Needle#93004450 Fluid Nozzle #93004170 Fluid Nozzle + Fluid Needle Set#93004320

Nut#93004300 Needle Packing Cartridge Set#93004410

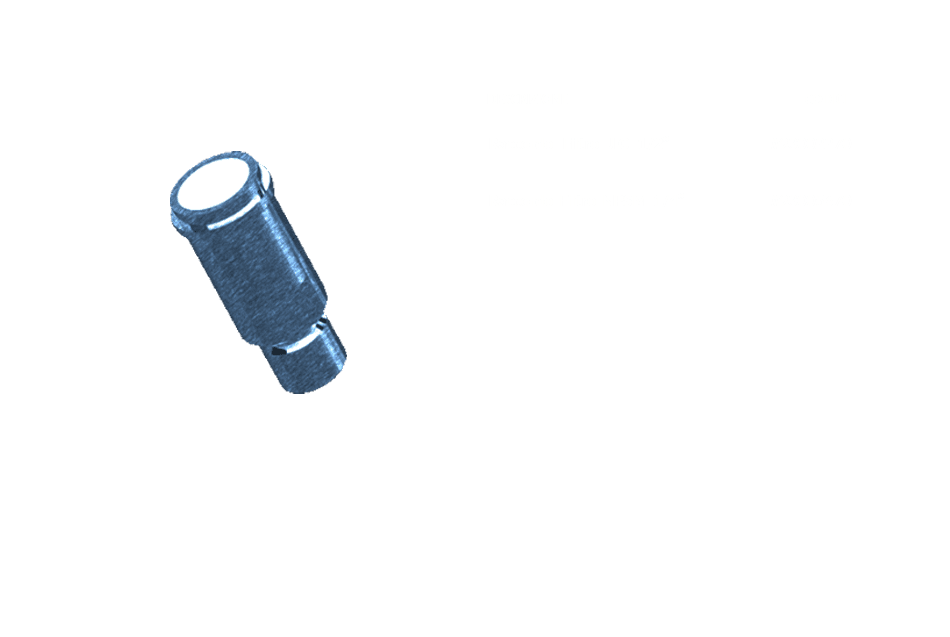

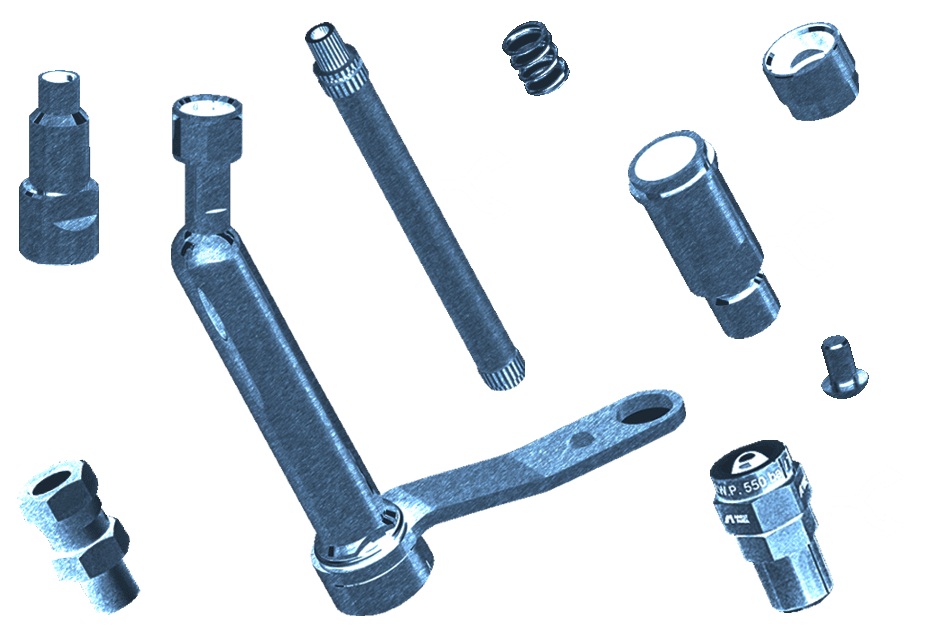

Filter Joint#930144A0 Adapter G1/4” NPSM 1/4”#94006030 Filter Case#930140A0 Filter Case#930140A0 Filter Nut#93004370 Option 2 Filter Screw#93004350 Option 3 Option 1
