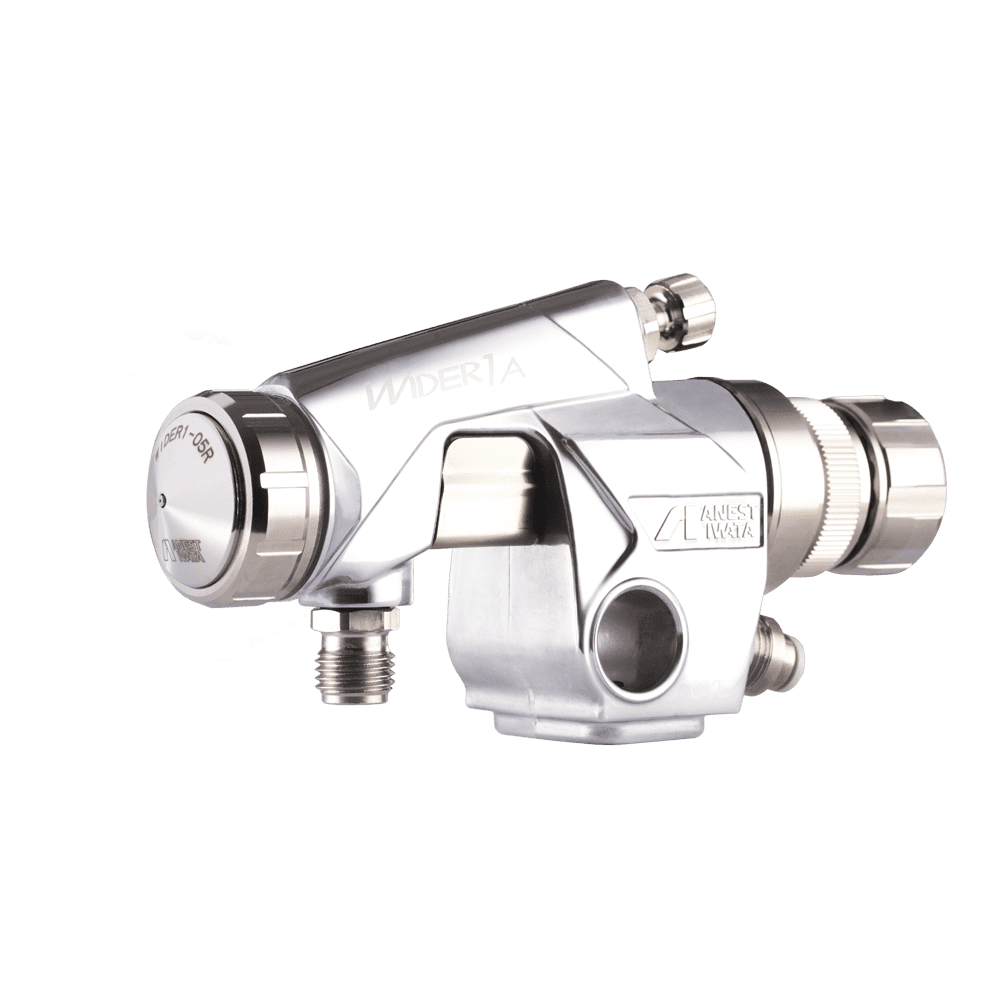

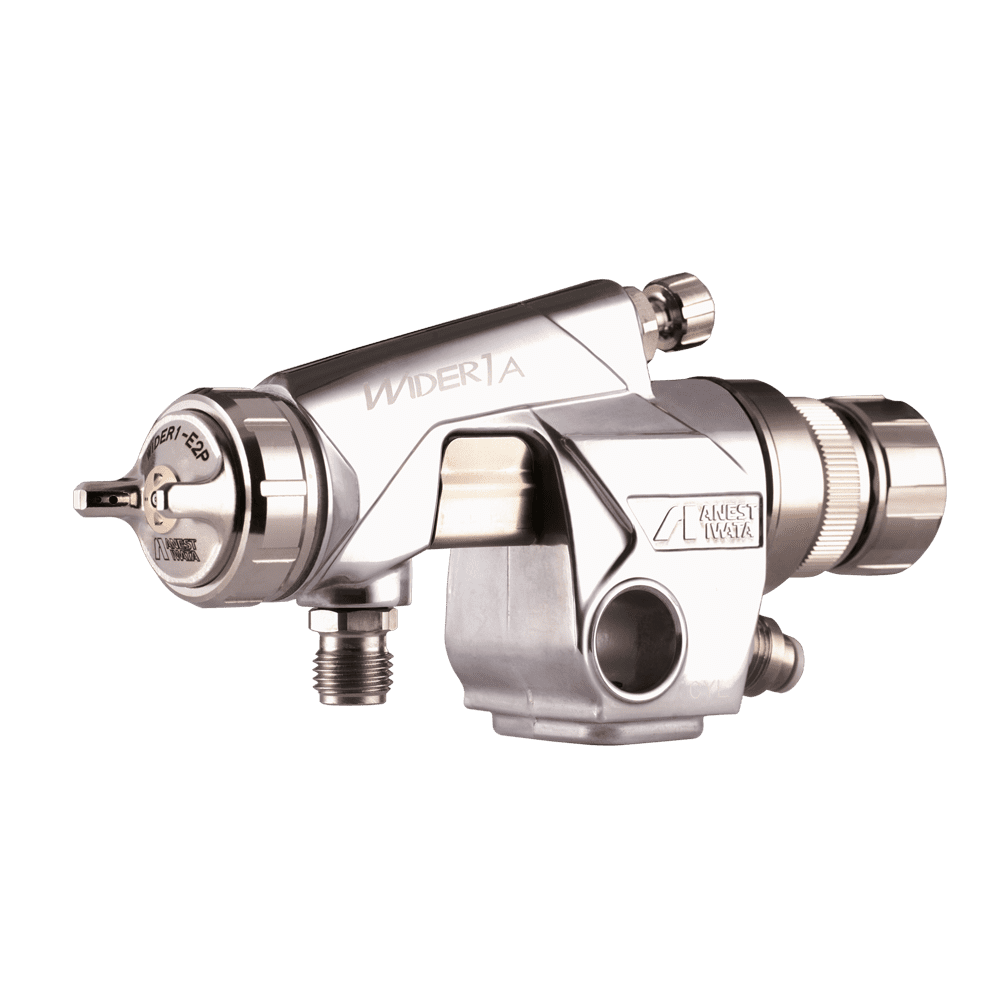

WIDER1A

Compact Size
Automatic Spray Gun

Designed for installation and operation of automatic
painting lines within the general industry sector,
this range consists of two models: WIDER1A & WIDER1A R.

WIDER1A

The new fluid adjustment feature for the WIDER1A improves and simplifies its disassembly, removal now achievable without the use of any tools.

The portion of the seal that blocks paint flow is constructed of a specific composite material with rubber and fluorinated resin, the choice of components and their coupling provide a longer lifespan of the seal itself.

The new development of the pattern adjustment set creates a linear response of the regulation making it easier to use and more intuitive than the previous version.

Features & Highlights

STANDARD TECHNOLOGY Standard Technology
5 Low Overspray Low Overspray
6 Precise Pattern Control Precise Pattern Control

Find Your Spare Parts

back

Pattern Adjustment Set Fluid Needle Guide Set Base Set Air cap - Fluid Nozzle + Fluid Needle Set Air cap - Fluid Nozzle + Fluid Needle Set R Needle Packing Cartrige Set Air Valve Set


Air Cap Nozzles and Air Caps Set


Air Cap Nozzles and Air Caps Set


Needle Packing Set93810620


Plug93625371 Pattern Adjustment Set93013470


Fixing Bolt93811580 Protection Cover93013510 Air Nipple G/1/4''93502621 Half Union Ø 6 mm (for “CYL)96802000 Half Union Ø 8 mm (for “CAP”)96802001


Needle Spring93514580 Piston Spring93513580 Fluid Adjustment Set93013711


O' Ring Set93849620 Air Valve Seat Set93013700 Piston93511580 "Y" Piston Packing Set (2 pcs./1 pk.)93903441
